SkyZone FPV Goggles With Diversity

SkyZone FPV Goggles With Diversity


 Sold out


The Skyzone FPV Goggles with built in 5.8GHz 32 ch. video diversity bring your FPV experience to the next level! These goggles are an all in one ground station in a super compact form + the added benefits of video diversity. The innovative imbedded front facing camera also lets you look around you with the touch of a button without needing to remove your goggles. Now you can launch and land your FPV aircraft LOS with ease, or take a quick look at your surroundings while on the ground.

The built in video diversity offers 32 channels on the 5.8GHz band, compatible with many popular video transmitters such as Foxtech, DJI, Boscam and more. Now you can use 2 different types of antennas, such as an omni-directional and a directional. Flying in a straight line long distance in the direction you're facing, or closer 360 all around you and the diversity will automatically choose the best reception.

Skyzone FPV Goggles come all the cables you'll need to get going, and include an imbedded head-tracker. Power the goggles via an external battery, ~7-26v (2s or 3s batteries work great).

This is version 2.0 that does not have the flickering issue.

Note: This Rx is not compatible with newer ImmersionRC or Fatshark Nexwave transmitters.


  • Built-in 32CH 5.8G Diversity that is compatible with most FPV 5.8G transmitters on the market (Foxtech, DJI, Boscam)
  • Built-in self calibrating headtracerk using a combination of gyros, inertial sensors and compass
  • Dual 854X480(WVGA) LCD Monitor,  1,229,760 color sub-pixels
  • Built-in external camera for surrounding view (640X480)
  • A/V in A/V out Earphone socket


  • Skyzone Diversity FPV Goggles
  • Carrying case
  • Futaba data cable
  • JR data cable
  • WFLY data cable
  • A/V cable
  • Power cable
  • 2x 5.8G 2dBi antenna
  • Manual

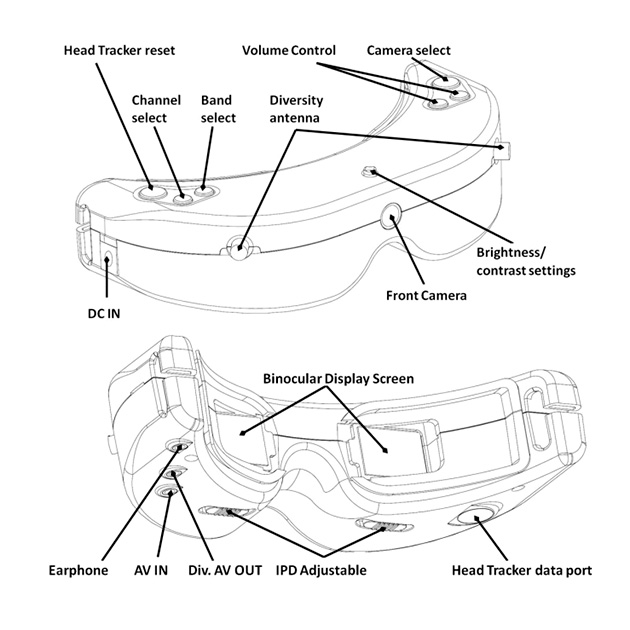

Skyzone FPV Goggles

Skyzone Specs
